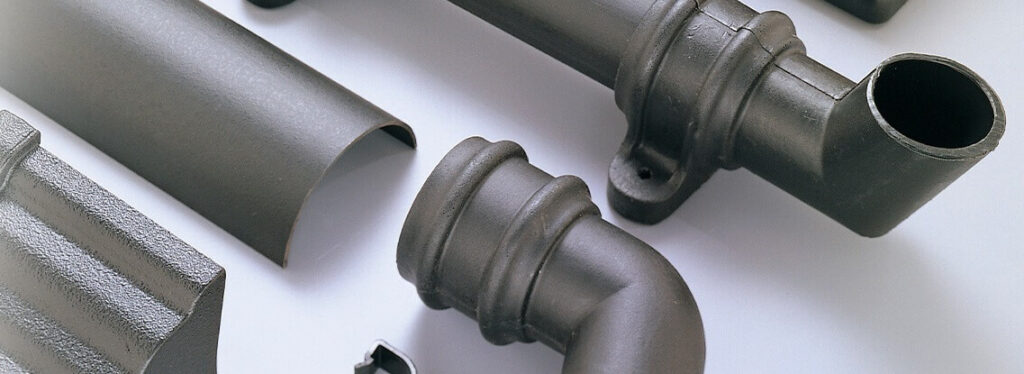

Cast Iron Style Range of alternative pvc products
Domestic
The range includes: 106mm Prostyle, which is based on the Ogee design, 112mm Roundstyle and, for larger or steeper roofs, a 115mm Deepstyle profile, all utilising the 65mm and 68mm downpipes, fittings and six hoppers moulded to traditional Ogee, Bath and Gothic designs.
- Authentic detailing and finish on downpipe, guttering, hoppers and fittings
- Fully compatible with Cast Iron Soil System and traditional cast iron
- Available in 5 design options
- Incorporates 68mm Downpipe
- Choice of six hoppers
- 10 year guarantee
High Capacity
The High Capacity Cast Iron Style drainage solution has been developed for traditionally styled buildings with larger roof areas.
Period style detailing combined with very high levels of roof drainage ensure that this system can be used on a wide variety of large heritage style buildings. Featuring 105mm downpipe, this range has been purposefully designed with such attention to detail that it even replicates the dimensions of traditional 4” cast iron.
This authentic looking system can be used as a direct refurbishment replacement of cast iron in commercial buildings, churches, Georgian and Victorian shop frontage and larger period dwellings. Double seals on outlets, unions and angles guarantee optimum performance of this large, robust Cast Iron Style gutter system.
- Authentic detailing and finish on downpipe, guttering and fittings
- Fully compatible with Brett Martin’s Cast Iron Soil System and traditional cast iron
- Double seals on outlet, unions and angles
- Incorporates 105mm downpipe
- 10 year guarantee
105mm Downpipe
Replicating traditional 4” cast iron measurements, the unique 105mm downpipe system, includes a 1.8m length of pipe with internal fixing lugs, as does the pipe coupler and shoe to enable the downpipe to be secured to the wall. Pipe connection to the gutter outlet is achieved with either a range of one-piece offsets or directly into authentically styled hoppers.

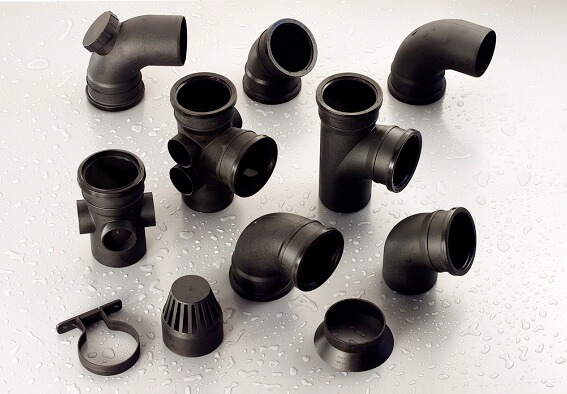

Soil Systems
To complement Cast Iron Style Domestic and High Capacity rainwater systems, Brett Martin have developed a comprehensive Cast Iron Soil System with a realistic Cast Iron finish.
Designed to incorporate traditional cast iron detailing with all the benefits of a plastic system, the Cast Iron Soil System completes the range providing a cost effective alternative to cast iron in renovation or new build projects.
Push-fit
Fully sealed, Cast Iron Style is a Push-fit Soil System which offers fast installation and maximum durability. Due to the system’s range of seals and adaptors, it is fully compatible with other systems. The provision of long lasting rubber seals, retained by strong snap caps, gives the convenience of Push-fit installation plus prolonged reliability. At ground level the Cast Iron Soil System fully integrates with Brett Martin’s Underground Drainage System.
- Authentic detailing and finish on downpipe, shroud, clips and fittings
- Fully compatible with Brett Martin’s Cast Iron Style Rainwater Systems and traditional cast iron
- Convenient Push-fit installation
- Fully sealed, reliable system
- Integrates with Brett Martin Underground Drainage Systems
- 10 year guarantee
